Milestone Technology Co., Ltd. is a global underground mining vehicle manufacturing and wholesaling company that supplies the world’s finest mining vehicle machinery. Providing the integration of R&D, production, wholesales, trading with a large-scale. We look forward to becoming your long-term partner in China.
The chassis adopts an off-road engineering pickup truck customized integral "U"special-shaped frame rack,the front axle adopts a double transverse arm spiral spring independent balanced push-pull suspension with damping and shock absorption, and the rear axle adopts a leaf spring non-independent suspension and shock absorption. The power system is equipped with XTW494DZLDFB National III low emission, electronic fuel injection explosion-proof diesel engine system. The variable speed differential assembly box with 5+1 gears, a fully enclosed engine+double row 5-seat cabin, and a 500kg rear opening cargo box (overall molding).
The front and rear axles adopt wet brake steel drive axles, and the chassis has strong load-bearing capacity. Hydraulic power steering, mechanical transmission, part-time 4-wheel drive, climbing ability of 14º. (Designed according to GB/T1199-2022 new standard for explosion-proof diesel trackless rubber-tyred vehicles). The rear box carries 500kg, which can meet the requirements of transportation from the floor to the working face dierectly for mine using inclined shaft and cage.
Product Usage:

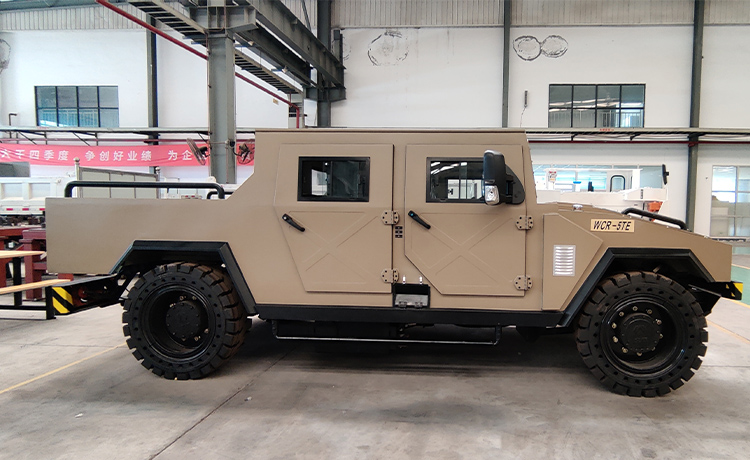

Dimensions: 5700×1830×1850mm, belongs to the mining high mobility small passenger and cargo vehicles.
Main purposes: command in the production process, various inspection / on-site command and scheduling in the mine work, rapid mechanical and electrical maintenance/repair, rapid distribution of small mechanical and electrical equipment/tools/materials, rescue and emergency command, etc; it can work continuously throughout the day in a mining environment.
Body structure
Hard style design: This command car continues the classic hard off-road style of the Warrior series, and the square body structure shows a strong hard atmosphere. The whole vehicle is painted in green, which not only conforms to the military style, but also ADAPTS to the needs of a variety of complex environments.
Off-road performance: The vehicle is equipped with a non-bearing body and full-time all-wheel-drive system, large-sized tires and a sturdy body structure.

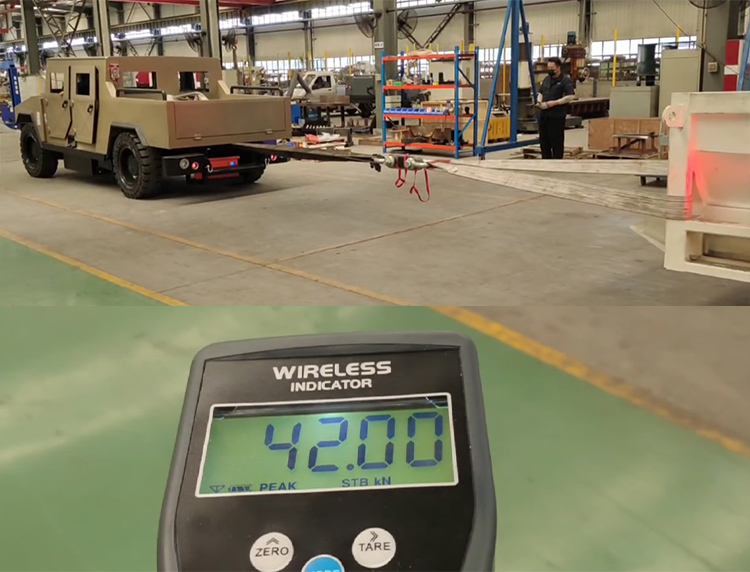

Tension test
Explosion-proof appliance configuration
1, system power supply: explosion-proof ion starting power supply, explosion-proof diesel engine safety protection, explosion-proof engine, explosion-proof starter;
2, safety electrical: lighting/signal (near and far light control), driving record, reversing image (front and rear radar), driver attitude monitoring;
3, system control: system total stop switch;

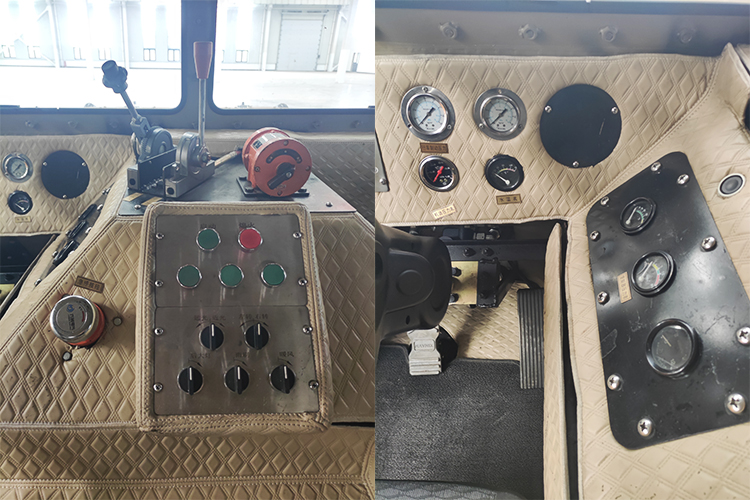

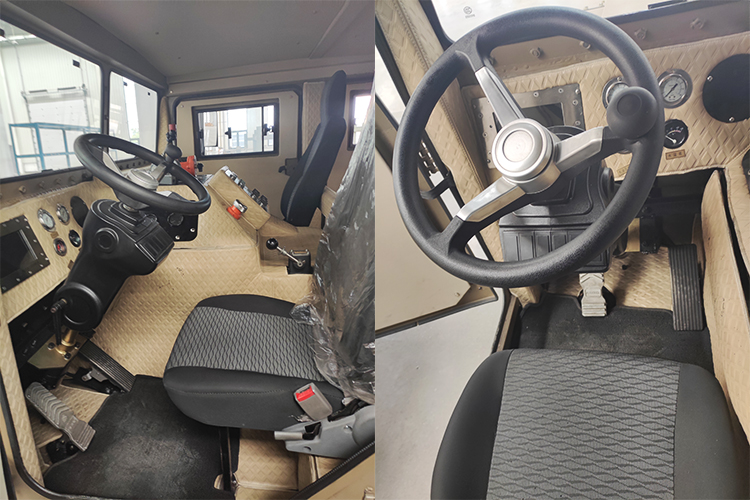

Cockpit
The cab design is spacious and bright, providing the driver with a good view and a comfortable driving environment. The internal layout is reasonable, and various control buttons and switches are within reach, so that the driver can react quickly in an emergency.

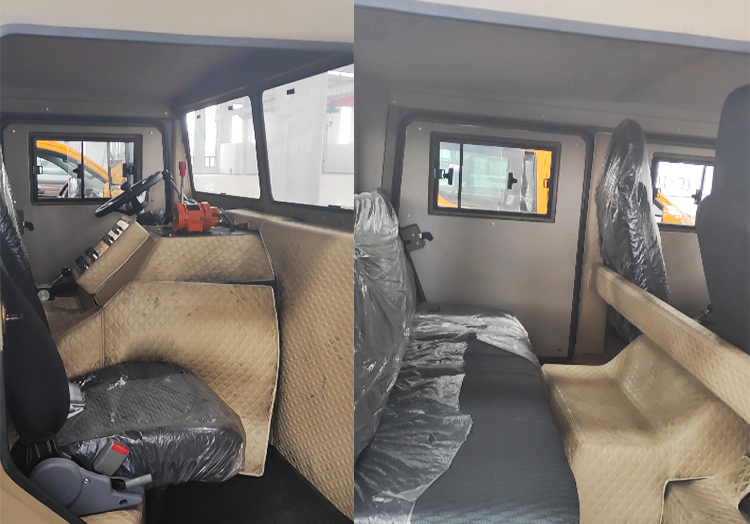

Seat
The ergonomic design of the seat provides good support and wrapping, further enhancing the ride comfort.

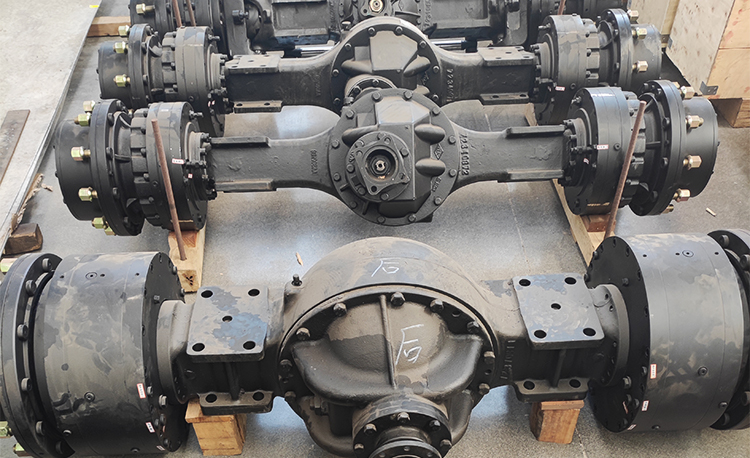

Axle
Rugged and durable axle construction for harsh off-road environments. The axles include front alxe and rear axle, each carrying the vehicle's significant weight and transmitting power.
