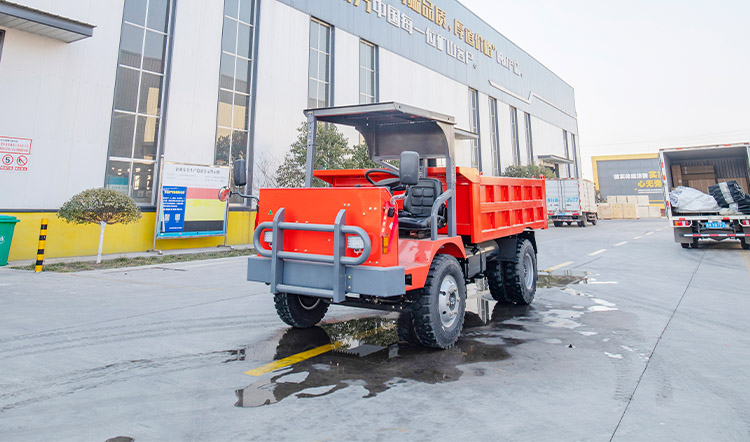

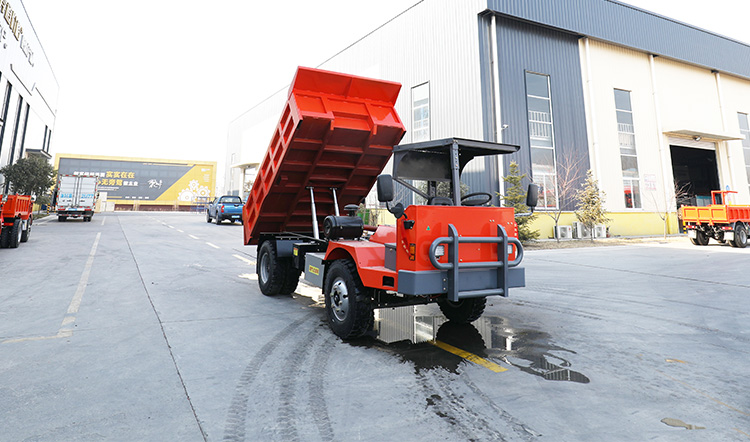

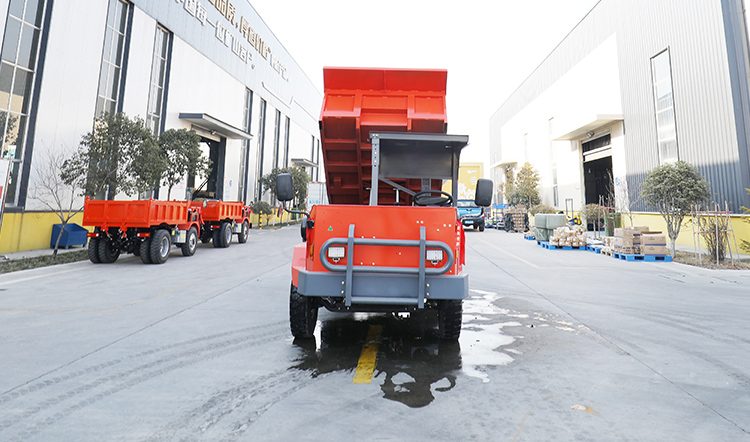

Mining Dump Truck

The 7-ton four-wheel drive non road transport vehicle for mining is a transportation tool specially designed for non road environments such as mines and tunnels, with strong off-road capabilities and efficient transportation efficiency. These types of vehicles typically have the following characteristics and functions:

Off road capability: The mining 7-ton four-wheel drive non road transport vehicle is designed to operate in complex non road environments such as mines, tunnels, etc. They are typically equipped with a four-wheel drive system to ensure good traction and stability in various terrain conditions.

Power system: The Yunnei 4102 turbocharged engine provides power, which can provide strong power output to ensure effective operation of the vehicle under various working conditions.

Transportation efficiency: The design of the 7-ton four-wheel drive non road transport vehicle for mining aims to improve transportation efficiency by optimizing the vehicle structure and increasing loading capacity, achieving fast and efficient cargo transportation.

Customized service: Vehicles can be modified and customized according to customer needs to adapt to different working environments and transportation needs.

Safety performance: The vehicle is equipped with a safe braking system, including maintenance free, high-capacity, highly sensitive reducers, and corrosion-resistant four-wheel wet disc brakes, ensuring the safety performance of the vehicle in complex road conditions such as high-speed downhill driving.

The 7-ton four-wheel drive non road transport vehicle for mining is an efficient and safe transportation tool designed specifically for complex non road environments such as mines and tunnels. It has strong off-road capabilities, efficient power systems, and excellent safety performance, and can meet the transportation needs of various complex environments

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
