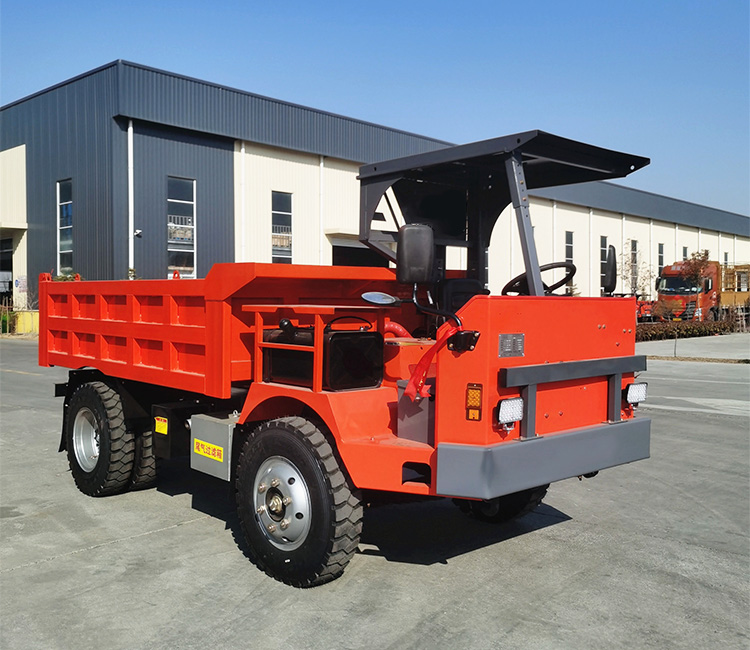

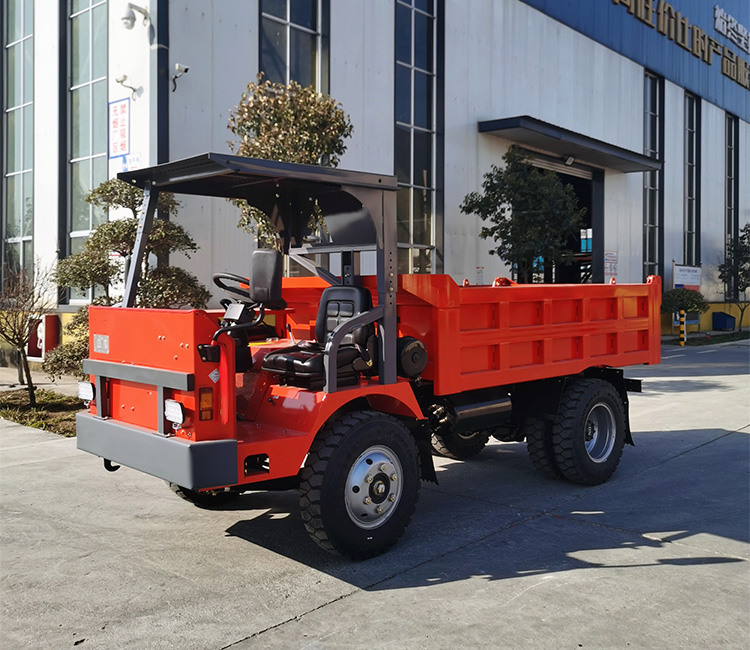

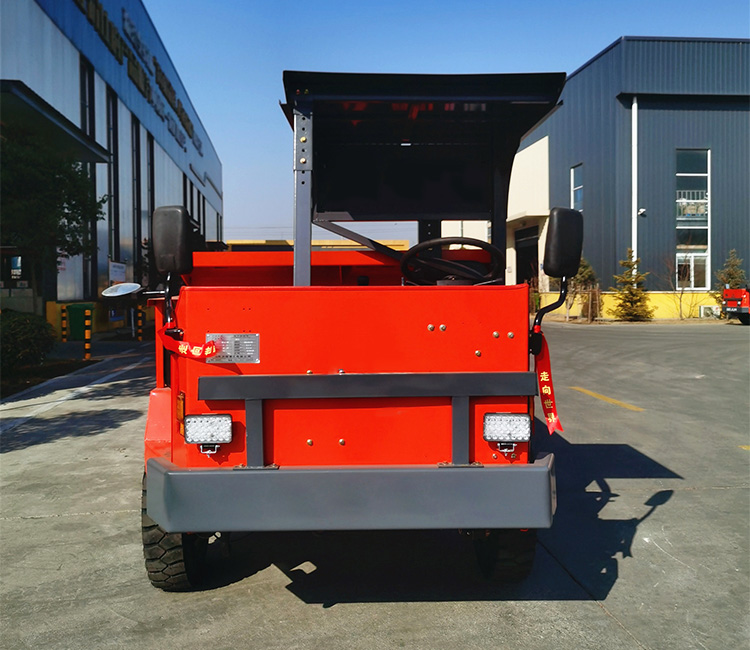

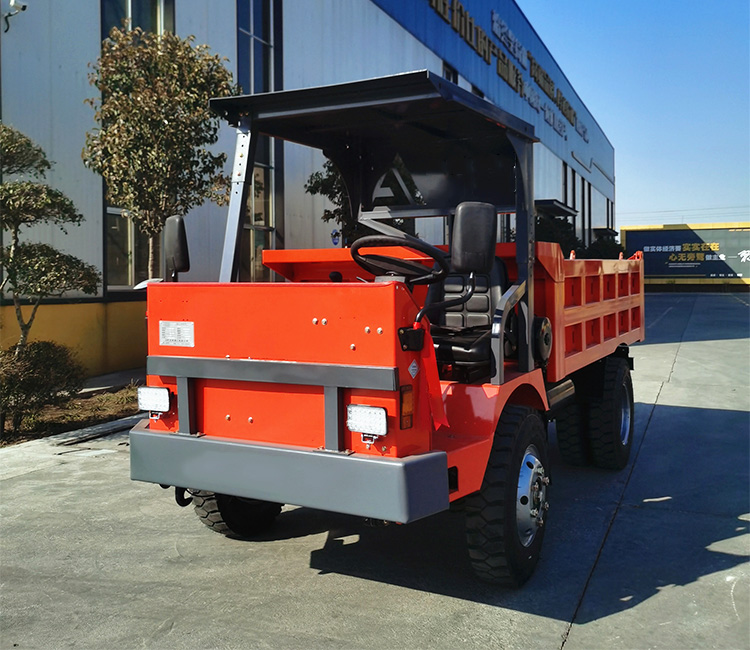

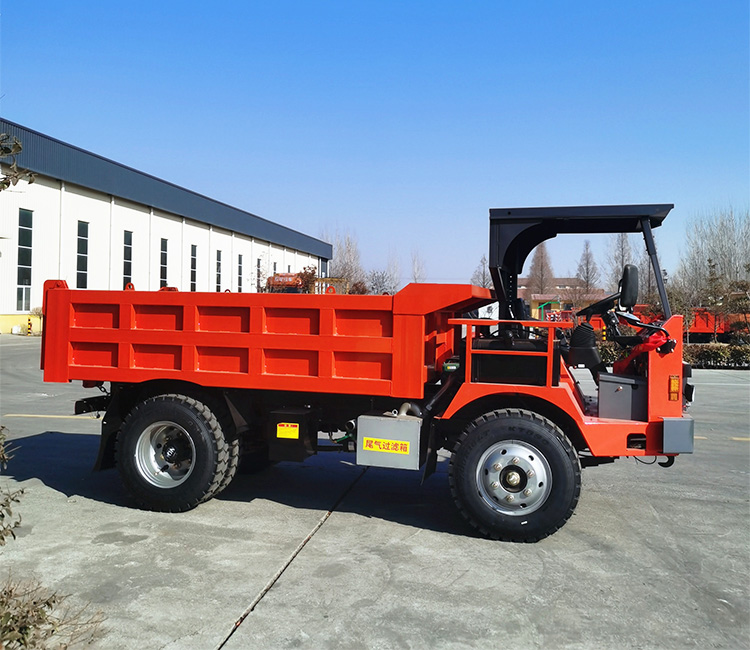

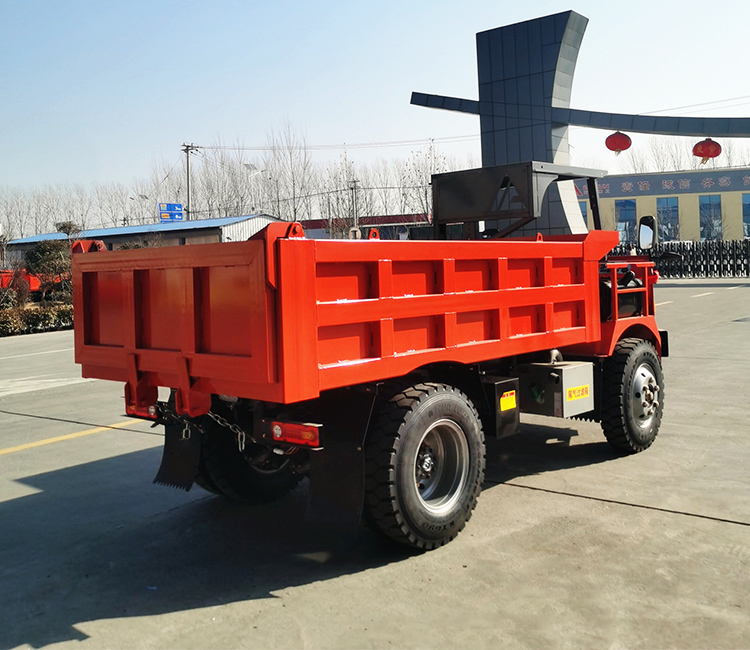

Mining Dump Truck

The 5-ton four-wheel drive non road transport vehicle for mining is a transportation tool specially designed for harsh working environments, with the following characteristics and functions:

Power system: Diesel engines are usually used as the power source, providing powerful power and torque to meet the needs of heavy-duty environments such as mines and construction sites. The horsepower of the engine can be selected according to specific working conditions to meet different work requirements.

Four wheel drive design: Adopting a four-wheel drive design, it provides better traction and stability, and adapts to complex and changing non road environments. This design enables the vehicle to travel stably on uneven or soft ground conditions, improving work efficiency and safety.

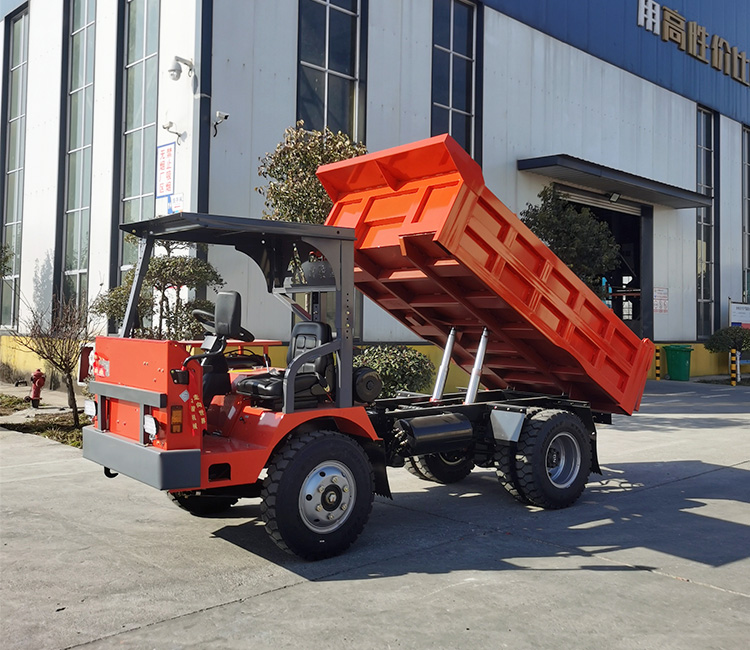

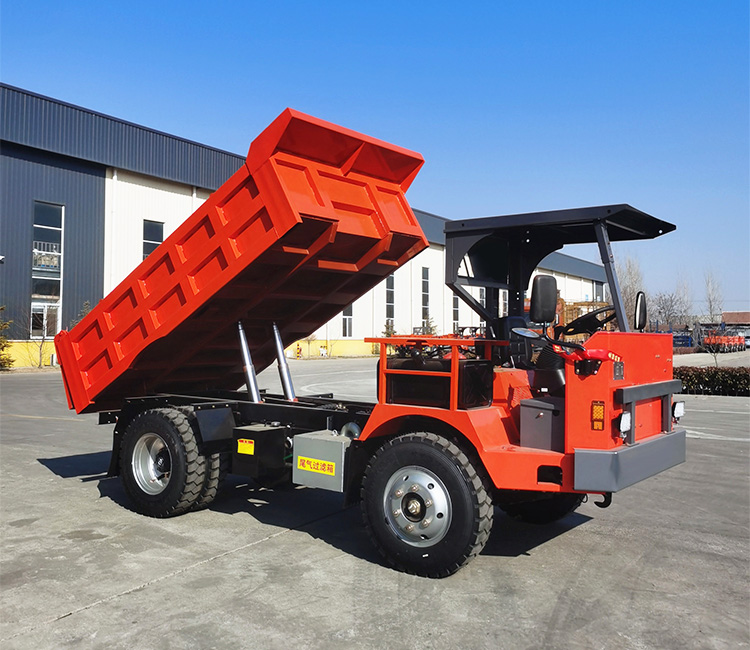

Self dumping function: Some mining transport vehicles are equipped with self dumping function, which enables rapid unloading of the carriage through their own gravity or hydraulic control, improving work efficiency. The self dumping function is particularly important for places such as mines and construction sites that require frequent loading and unloading.

Special configuration: According to the specific needs of the working environment, vehicles can be equipped with special configurations such as reinforced chassis, large capacity fuel tanks, explosion-proof equipment, etc., to ensure the reliability and safety of the vehicle under extreme conditions.

Customized service: Provide customized services to customize vehicles according to specific customer needs, including cabin size, engine power, tire specifications, etc., to meet the needs of different customers.

Safety performance: Mining transport vehicles pay special attention to safety performance in their design, including braking systems, steering systems, lighting systems, etc., to ensure the safety of operators. In addition, emergency braking systems and warning devices may be equipped to respond to unexpected situations.

Applicable environment: This type of vehicle is mainly suitable for Mining roadway.The Tunnel Being able to withstand harsh working environments and heavy load conditions is an important tool for improving work efficiency and ensuring safety.

The 5-ton four-wheel drive non road transport vehicle for mining is a high-performance transportation tool designed for specific working environments. Its powerful power, four-wheel drive design, self dumping function, and customized services make it an indispensable and important equipment in mines, construction sites, and other places.

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
