Milestone Technology Co., Ltd. as a professional manufacturer and supplier of agricultural land leveling equipment, our vehicles have been exported to many countries in Asia, the Middle East, Africa and other countries with good price advantages and ISO & CE certification. We look forward to being your long-term partner in China.
Technical Parameter
Category | Item Number | Value | |
Basic Parameter | Model | WCJS16RE | |
System Structure | Center Articulated- Non-Load-Bearing Dual Cab Structure | ||
Dimensions（mm） | 7240×1550×2200 | ||
Rated Load（kg） | 8150 | ||
Net Weight（kg） | 15 | ||
Traction Force（kN） | 65 | ||
Max. Speed（km/h） | 20 | ||
Max. Climbing Ability | 14° | ||
Engine Parameter | Diesel Engine Model | HR4105DZLQFB( DongFangHong) | |
Rated Power(kW)/ Rotation(r/min) | 74/2200(DongFangHong） | ||
Max. Torque（N.m） | 409/1700(DongFangHong) | ||
Exhaust Gas Emission | National III | ||
Performance Parameter | Starting Mode | Compressed Air Starting | |
Transmission Mode | Hydraulic-Mechnical Transmission | ||
Hydraulic Gearbox | 3 Gear Adjusting Speed/Reverse Gear | ||
Driving Mode | Full-time Four Wheel Drive | ||
| Turning Mode | Hydraulic Power Turning | ||
Suspension Mode | Front Axle | Hydraulic Power Turning | |
Rear Axle | Rear axle plate springs to enhance shock absorption | ||
Fuel Tank | 80L | ||
Hydraulic Oil Tank | 120L | ||
Brake | Front, Rear Axle Wet Multi-Disc Brake | ||
Tyre | 36×12.5-28 Solid Filled Engineering Big Pattern Tyre | ||

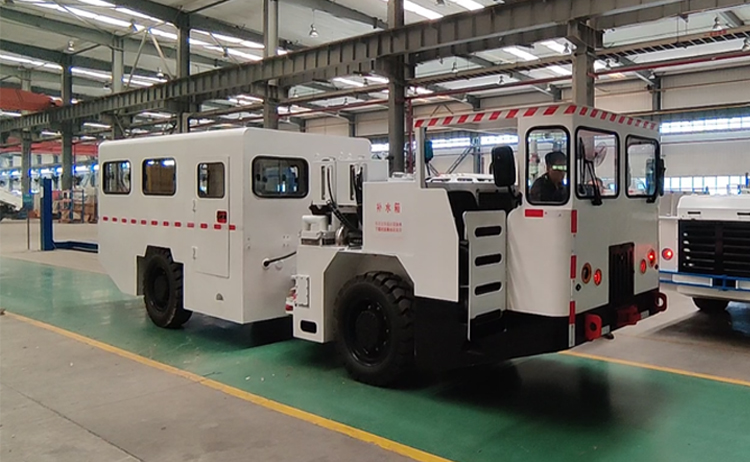

The vehicle chassis frame is a split center articulated type, hydraulic power steering, and full-time four-wheel drive. The front and rear axles are steel wet brake engineering axle, and the front and rear engineering axles adopts plate spring to reinforce shock absorption. The instrument and display monitoring is integrated on the platform, operation system adopts the driver's right hand layout (parking, hydraulic shifting, and lifting operations), a 80L fuel tank, solid filled engineering pattern tires, etc. Front and rear open cab, it’s efficient transportation for two-way driving, and equipped with two independent locking driving systems. The power tail can switch the driving direction of hydraulic, electricity and compressed air.The instrument and display monitoring is integrated on the dual platform. The major driver cab (open) and minor driver is arranged in the personnel carriage, the personnel carriage is full closed, emergency door is set in the rear carriage in and out exit.
Produce Usage:
It is suitable for transport operation under inclined shaft and cage conditions in well tunnel. Suitable for high humidity, high dust, long distance can not turn up, down the mountain transportation operations, to meet the mine personnel transportation, motor vehicle transportation, class Chinese food shooting and other auxiliary transportation work.
Car Recorder
Car recorder is also one of the essential equipment for two-way personnel transport vehicles. It can fully record a lot of information about the vehicle and the driver, such as driving speed, time, mileage, etc., which helps managers to grasp the running status of the vehicle and prevent drivers from fatigue and speeding. In the two-way personnel transport vehicle, the installation position of the tachograph needs to consider the driver's line of sight and the convenience of operation.

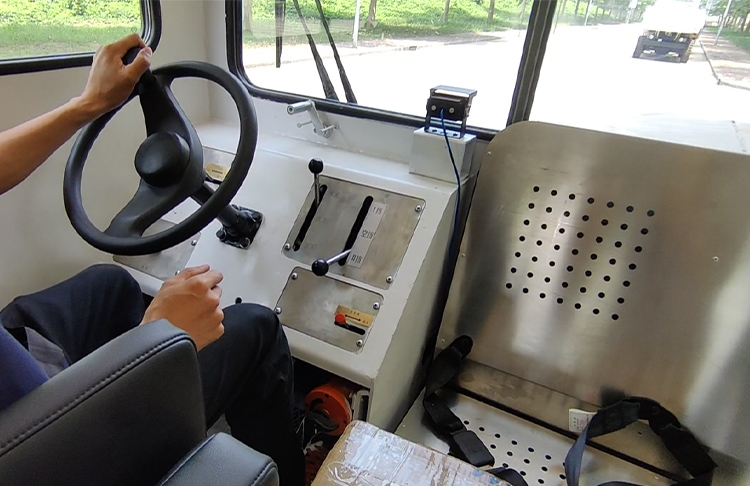

Cab
Cab design often takes into account the ease of operation and the openness of vision, the cab adopts a left and right symmetrical design, the cab also pays attention to comfort and safety, such as the European safety body standard design, with NVH quiet technology, and fast in and out design, to ensure that the driver in the long driving comfortable experience.

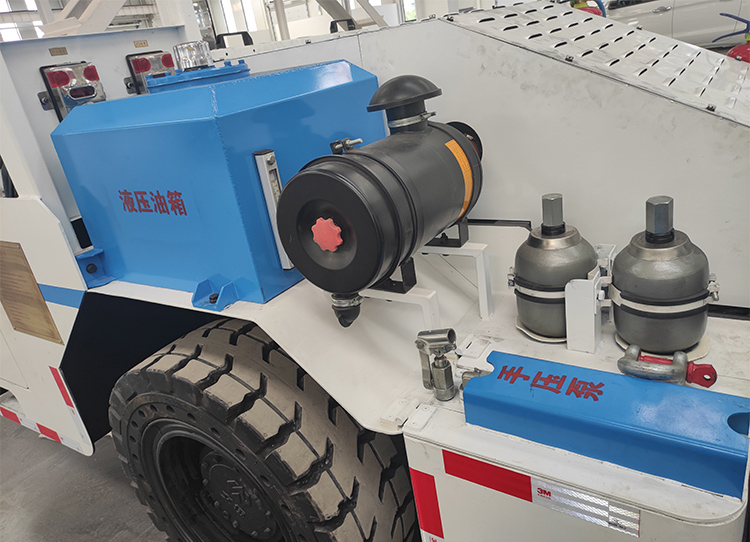

Hydraulic Tank
The hydraulic tank is used to store the oil needed to ensure the work of the hydraulic system, and has the functions of heat dissipation, impurity precipitation and air escape in the oil. For bidirectional personnel vehicle, if equipped with a hydraulic system (such as the control system on the garbage collection truck), the design of its hydraulic tank will directly affect the efficiency and stability of the vehicle.

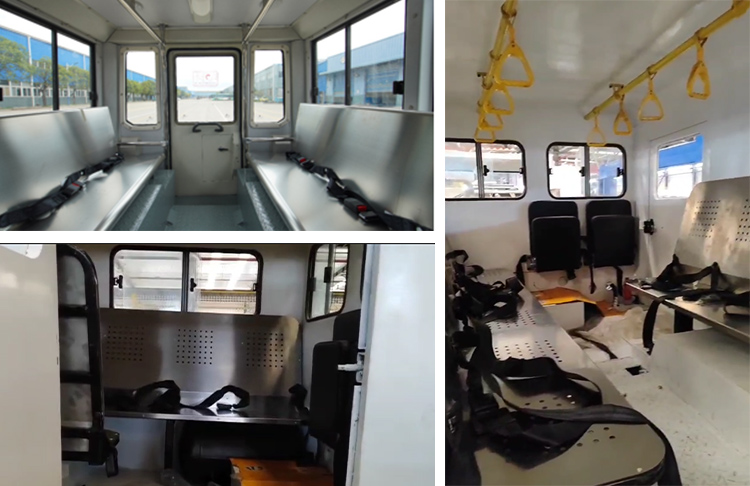

Seat
The integrated seating design can accommodate more people and save space.

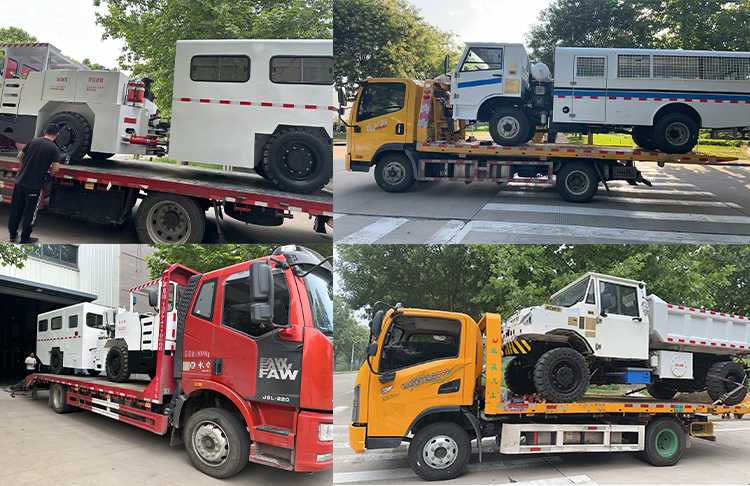

Packing
