Mining Dump Truck

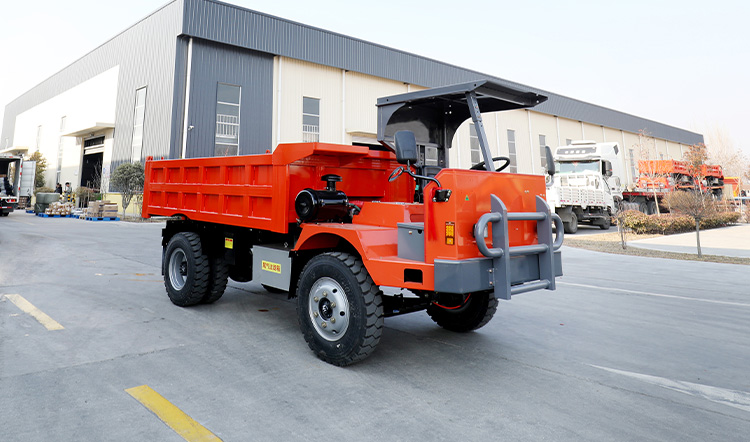

The 10 ton four-wheel drive non road transport vehicle for mining is a heavy-duty transport vehicle specifically designed for mining operations, with four-wheel drive and strong load-bearing capacity, suitable for various complex mining environments. This type of vehicle typically has the following characteristics and functions:

Powerful carrying capacity: designed for transporting heavy objects such as ore and waste, capable of meeting the transportation needs of mines.

Four wheel drive: Through the four-wheel drive system, it provides better traction and stability, adapting to different terrains and working conditions.

Non road use: specifically designed for non road environments such as mining areas and construction sites, capable of handling harsh road conditions and working environments.

Customized services: Provide customized services based on customer needs, including vehicle colors, configurations, etc., to meet specific work requirements.

Safety and energy conservation: Emphasize safety performance while optimizing energy efficiency and reducing operating costs.

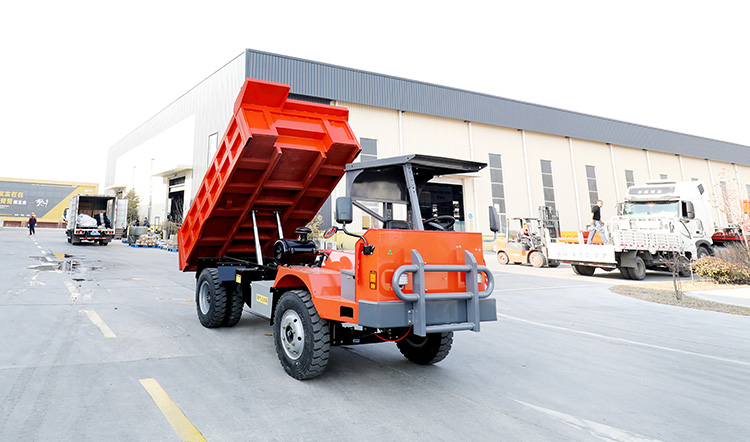

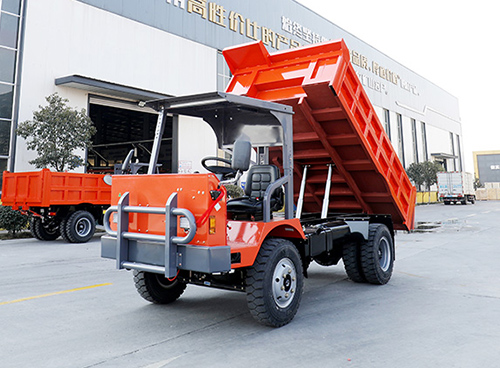

The vehicles are produced by professional mining machinery manufacturers, providing various functions including mining transportation, self dumping, narrow body tipping, etc., to meet the various transportation needs of mines. In addition, these vehicles have also undergone mining safety certification to ensure safe operation in specific environments such as underground.

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
