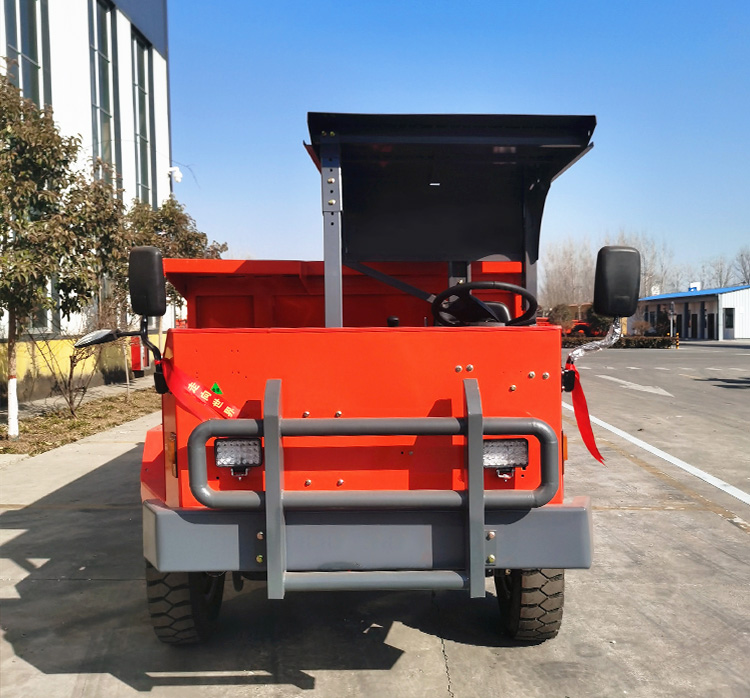

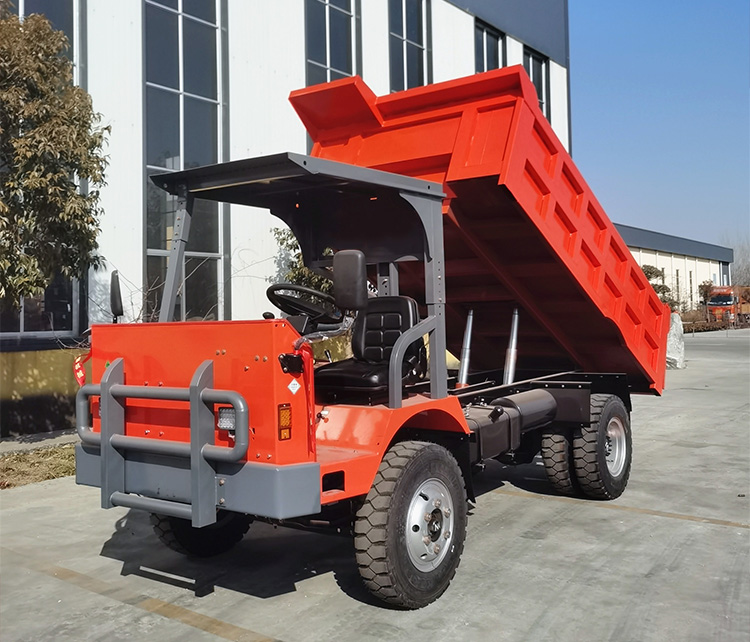

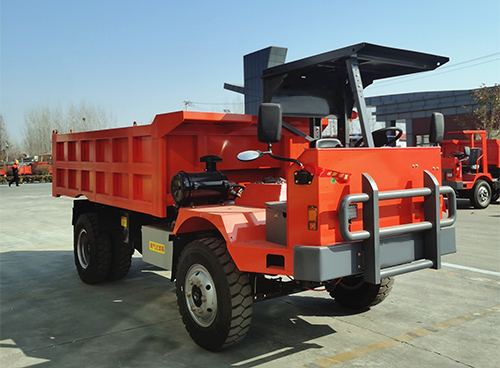

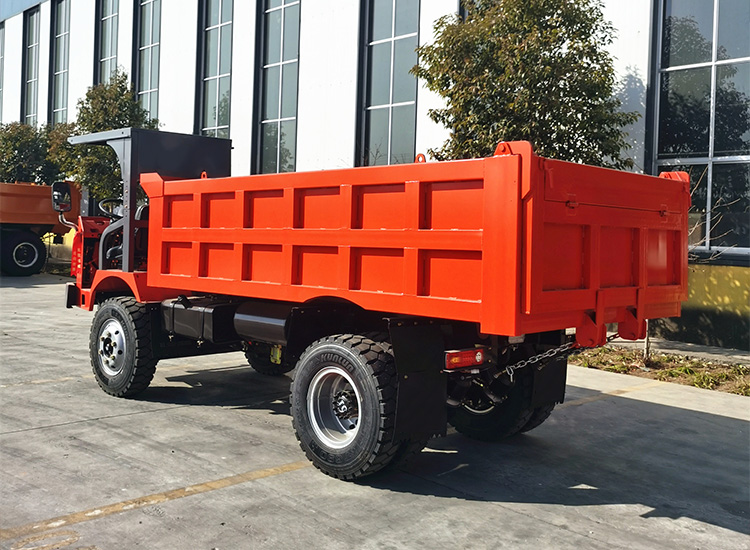

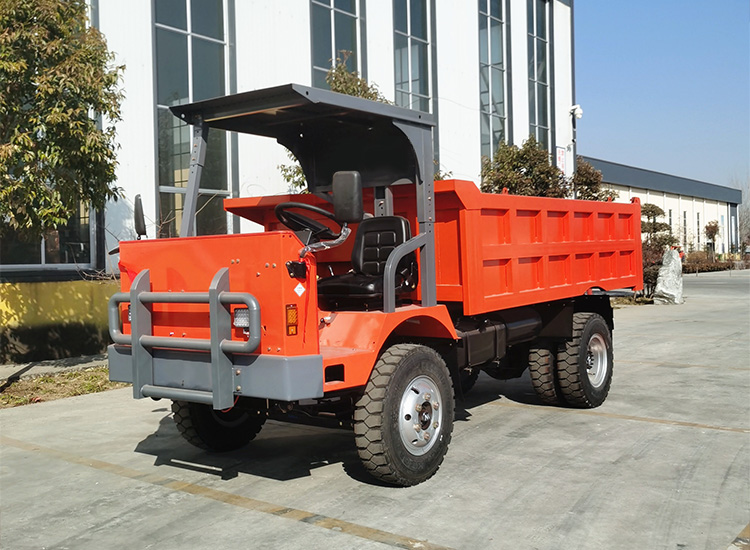

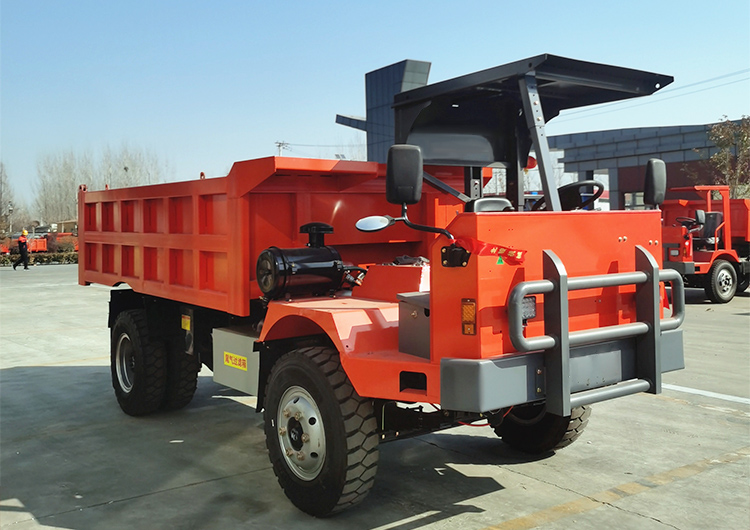

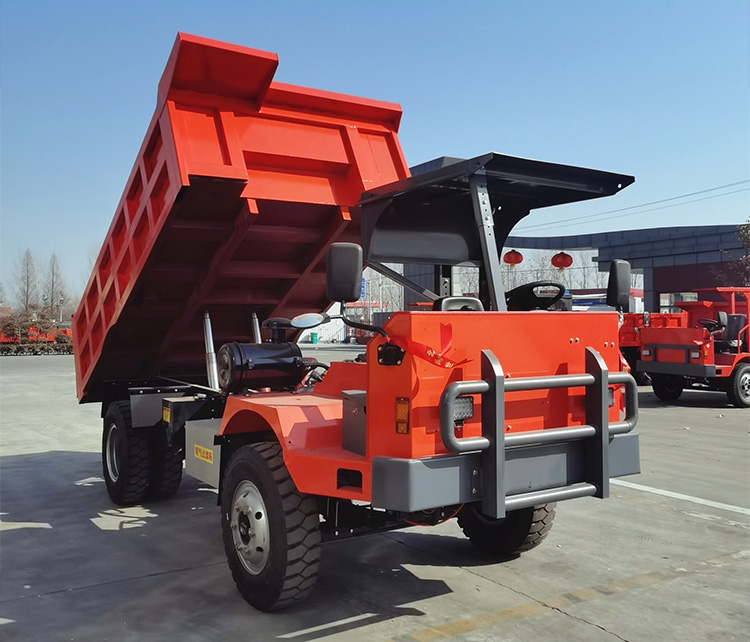

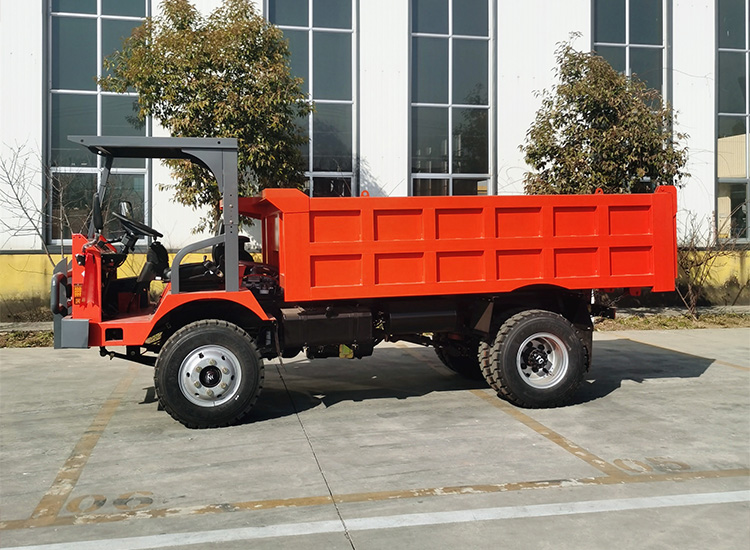

Mining Dump Truck

12 ton rear wheel drive non road transport vehicle It is a type specifically designed for Mining roadway The characteristics of transportation vehicles designed for construction sites and tunnels are as follows:

· Drive mode: Adopting rear wheel drive, which is the traditional two wheel drive mode, suitable for transportation needs under general road conditions.

· Engine configuration: equipped with Yuchai 4102 turbocharged engine Provide a power output of 110 horsepower to meet the needs of heavy-duty transportation.

· Carriage size: The carriage size is 3.4 meters * 1.8 meters * 0.7 meters (length x width x height), suitable for various transportation needs.

· Vehicle size: The vehicle size is 5 meters x 1.8 meters x 1.7 meters (length x width x height), making it easy to operate flexibly in various venues.

· Braking system: adopts dry Braking, suitable for parking needs in general road conditions.

· Tire configuration: Use 750-16 Chaoyang Mine steel wire tires, with a dual wheel design for the rear wheels to enhance stability and load-bearing capacity.

· Other configurations: Adopting Hydraulic steering gearturn, the cab is designed with a simple roof, the human-machine height is 1.85 meters, and the gear shift is done by using the gear line to shift gears.

This type of transport vehicle, with its strong adapt ability and efficiency, has become a powerful assistant in industries such as mining, capable of meeting transportation needs in various complex road conditions and harsh environments

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
