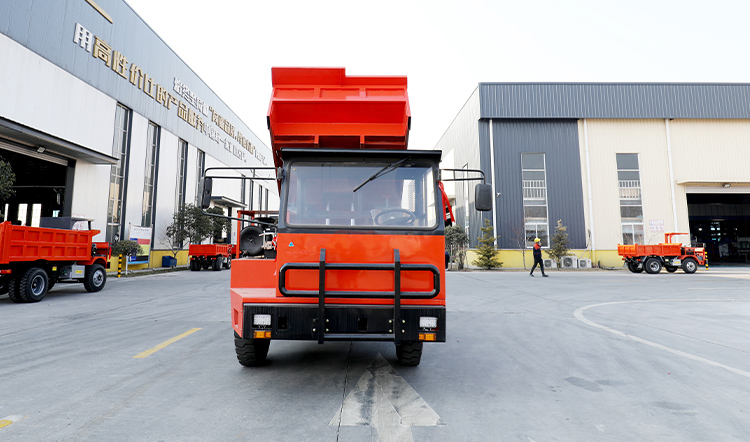

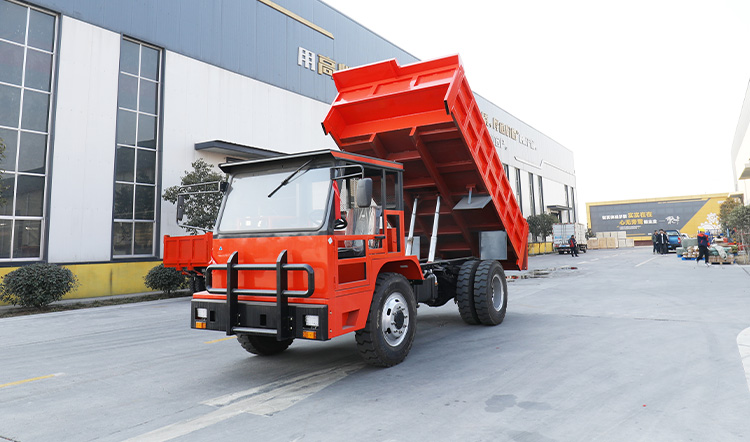

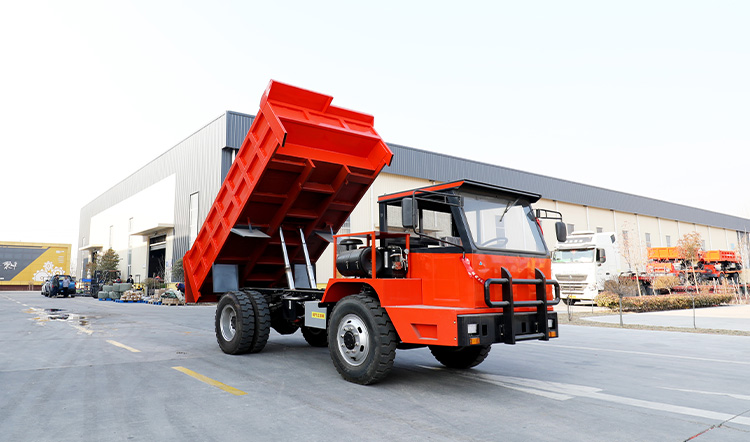

Mining Dump Truck

The 15 ton four-wheel drive non road transport vehicle for mining is a transportation tool specially designed for complex terrains such as mines and tunnels, with strong transportation capacity and good adaptability. These vehicles typically have the following features and functions:

Powerful transportation capacity: These vehicles are capable of transporting all items such as ore, building materials, slag, and stone, with a maximum load capacity of 15 tons, meeting the high-intensity transportation needs of complex terrains such as mines and tunnels.

Adapt to complex terrain: Due to being used in off highway environments, these vehicles are designed to travel on rugged and uneven terrain with good passability and stability.

Four wheel drive system: adopting four-wheel drive technology, providing better traction and handling, ensuring stable driving and efficient operation in complex terrains.

Customized design: Vehicles can be customized according to customer needs, including cabin size, engine model, gearbox, etc., to meet the needs of different working conditions.

Safety and environmental protection: Some models also consider engine exhaust treatment to reduce dust emissions, which meets the environmental protection requirements of the Safety Supervision Bureau and Quality Inspection Bureau.

Widely used: These vehicles are widely used in various places with poor road conditions such as mines, tunnels, brick factories, and construction sites, providing strong transportation support.

15 ton mining transport vehicle Usually has the following parameters:

· Engine model: such as Yuchai 4108 engine, providing sufficient power.

· Transmission model: Liansheng/Shangkun 6T53 integrated transmission, suitable for different driving speeds and load requirements.

· Rear axle model: Weighted 153 axle (10 holes), providing stable driving and load-bearing capacity.

· Size parameters: The vehicle is 5.6 meters * 2.3 meters * 2 meters (length * width * height), and the carriage size is 4 meters * 2.2 meters * 0.8 meters (length * width * height).

The vehicles are not only suitable for transportation needs in complex terrains such as mines and tunnels, but also have a high degree of customization and safety, making them important tools for mining transportation

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
