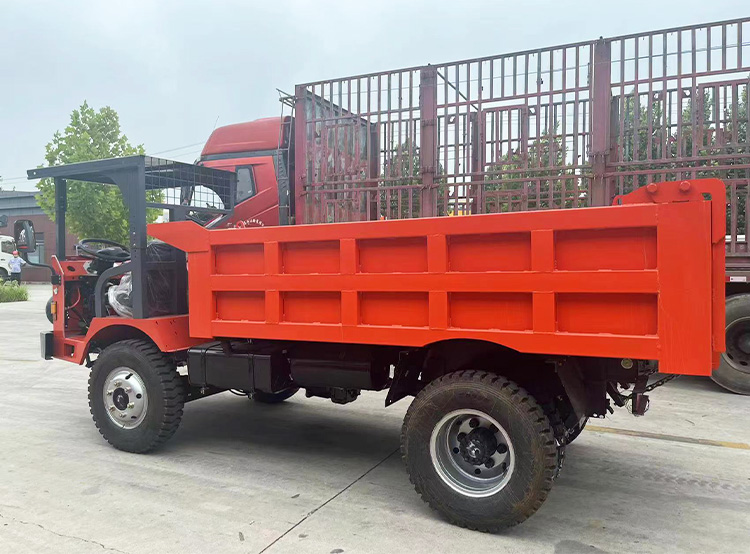

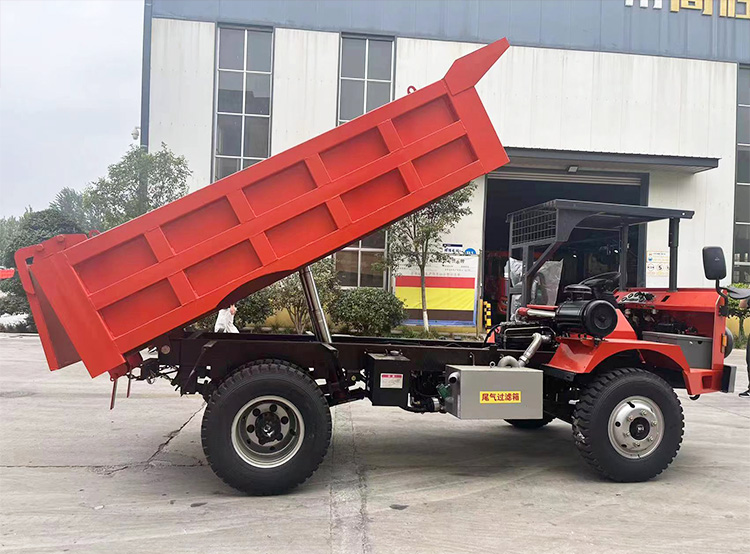

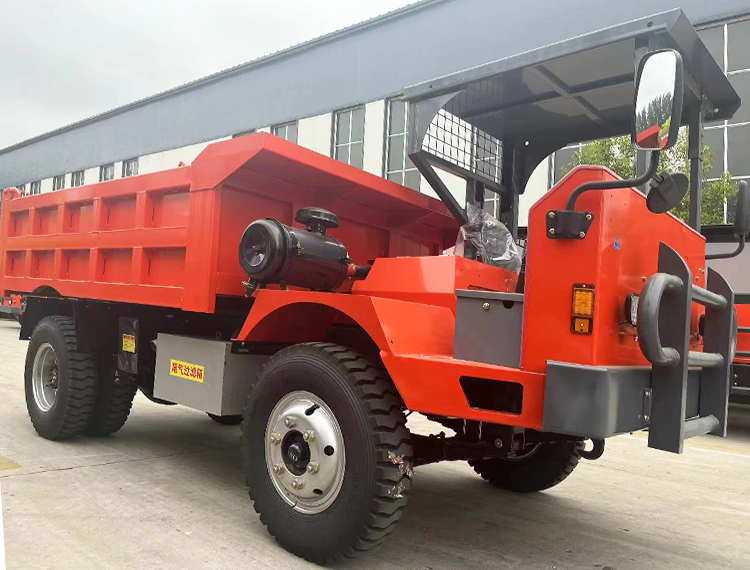

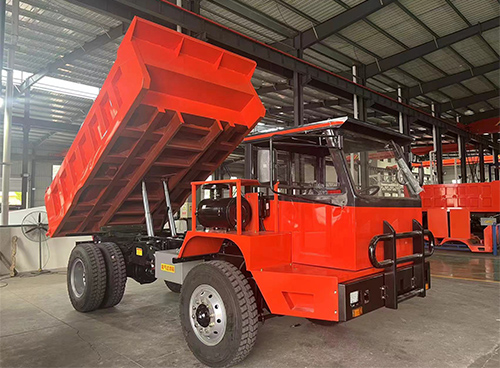

Mining Dump Truck

A 15 ton rear wheel drive non road transport vehicle is a heavy-duty transport vehicle specifically designed for non road environments. It has a rear wheel drive configuration and is suitable for operating on complex or uneven terrain. This type of vehicle is typically used in off highway environments such as construction sites, mines, and farmland to transport building materials, goods, or other heavy objects. The following are some key parameters and characteristics of a 15 ton rear wheel drive non road transport vehicle:

· Engine performance: Usually equipped with a medium power diesel engine, it can provide stable power output and adapt to various working conditions.

· Drive mode: Adopting rear wheel drive configuration, this configuration can provide better traction and stability in non road environments, especially when climbing or turning.

· Tires and suspension: Equipped with special tires suitable for non road use, such as wire tires, to provide better grip and durability. The size and quantity of tires depend on the design and load-bearing requirements of the vehicle.

· Load capacity: The rated loading capacity usually reaches 150000 kg, and the actual loading capacity can reach 17 tons to 19.5 tons, meeting various cargo transportation needs.

· Appearance design: mostly industrial appearance, easy to identify in various environments, and also has good visibility, improving safety.

· Size and weight: The body size and weight vary according to the specific design, with a length of around 5600mm, width of 2300mm, height of 2000mm, and a minimum ground clearance of 250mm, ensuring good passability.

· Special configuration: Some models may be equipped with a mining safety lift cab to meet the safety requirements of specific working environments such as mines.

The design of this vehicle aims to meet the high-intensity work requirements in non road environments while ensuring operational safety and efficiency. Produced by professional engineering machinery manufacturers, the equipment has good quality.

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
