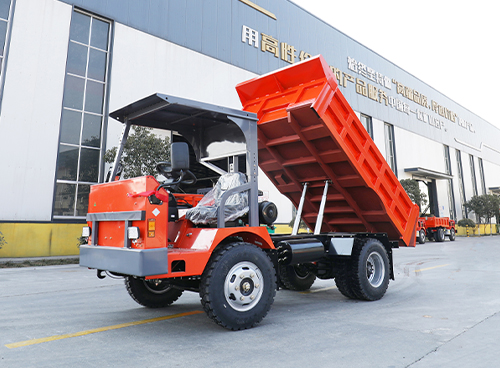

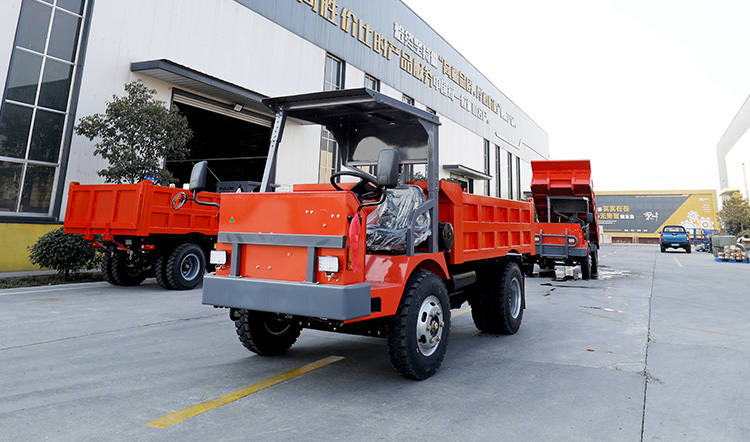

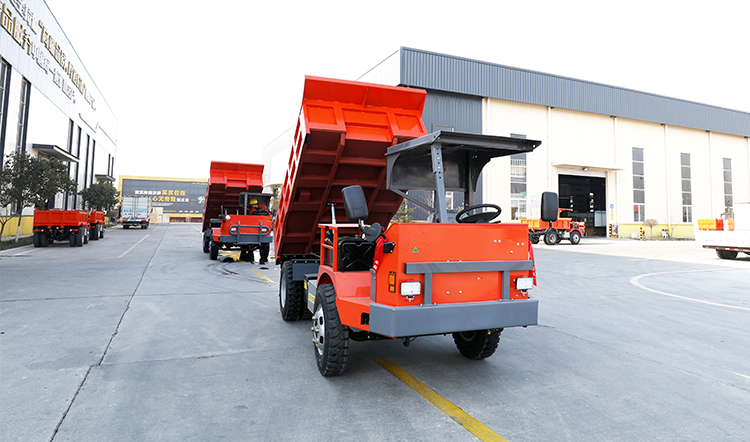

Mining Dump Truck

A 5-ton rear wheel drive non road transport vehicle is a transport vehicle specifically designed for non road environments, typically used in harsh or specific working environments such as mines, construction sites, tunnels, etc. This vehicle has a rear wheel drive design, which means that its power mainly comes from the rear wheels, providing good traction and stability, especially when climbing hills or requiring high load capacity. The main features and functions of a 5-ton rear wheel drive non road transport vehicle include:

Power system: Usually equipped with low-speed high torque engines, this engine design is suitable for use in work environments that require high load capacity, providing sufficient power to meet work requirements.

Drive mode: Adopting a rear wheel drive design, where power mainly comes from the rear wheels, this design provides better traction and stability when climbing hills or requiring high loads.

Adaptability: Able to adapt to various non road environments, such as mines, construction sites, tunnels, etc., with strong passability and load capacity.

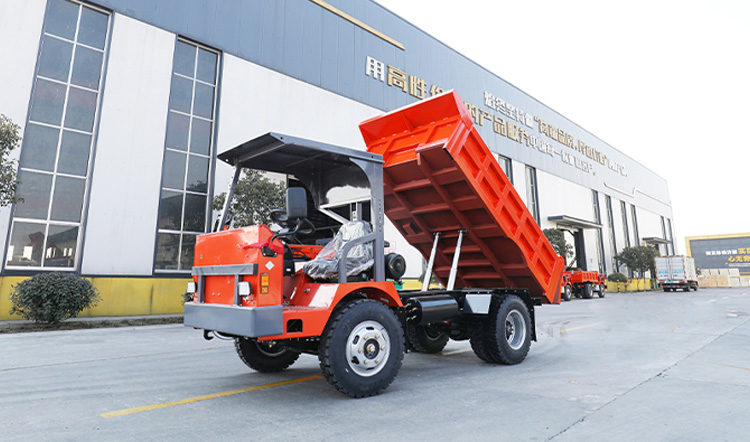

Self dumping function: It comes with a self dumping function and can be reset by the carriage using its own gravity and hydraulic control, making it easy to quickly unload goods.

Safety performance: By obtaining the mining safety standard qualification certificate, the safety performance of vehicles is ensured to meet the standards, and can be customized according to specific driving roads to adapt to different working environments.

Structure and Design: Adopting box cross-section wide body beams and large diameter engineering tires, the structure is strong, sturdy and durable, ensuring long-term stable operation in harsh environments.

Suspension system and tires: Specially designed suspension system and 700-16 mining wire tires ensure that the vehicle has good load capacity and passability.

A 5-ton rear wheel drive non road transport vehicle is a transport vehicle designed specifically for harsh and non road environments, with strong load capacity, stability, and safety, capable of meeting the transportation needs of goods in various non road environments.

Product Structure

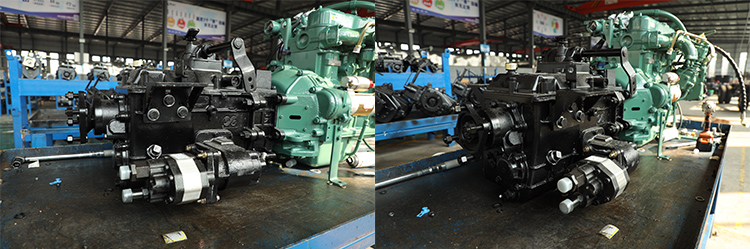

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

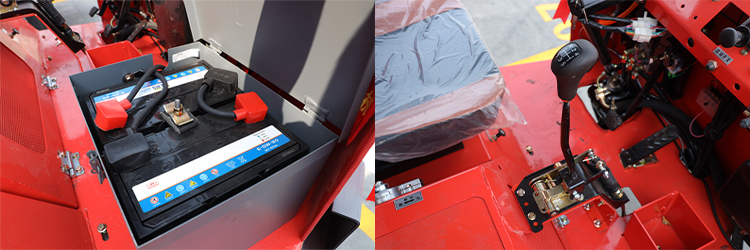

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

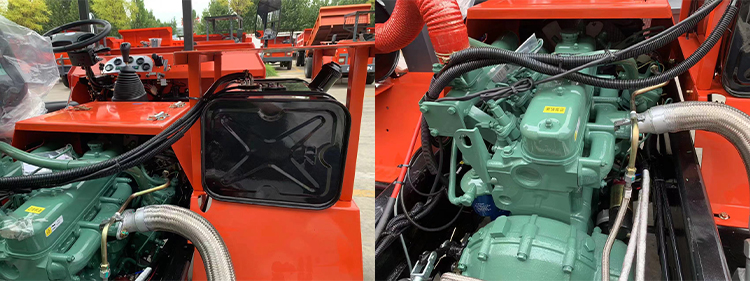

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

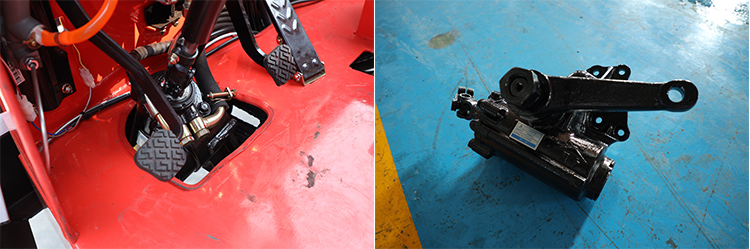

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

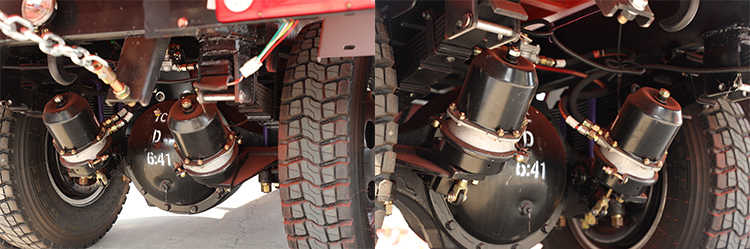

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
