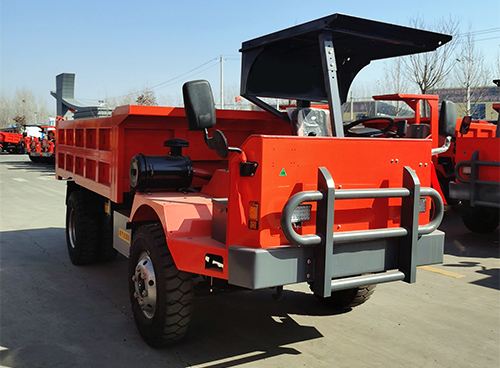

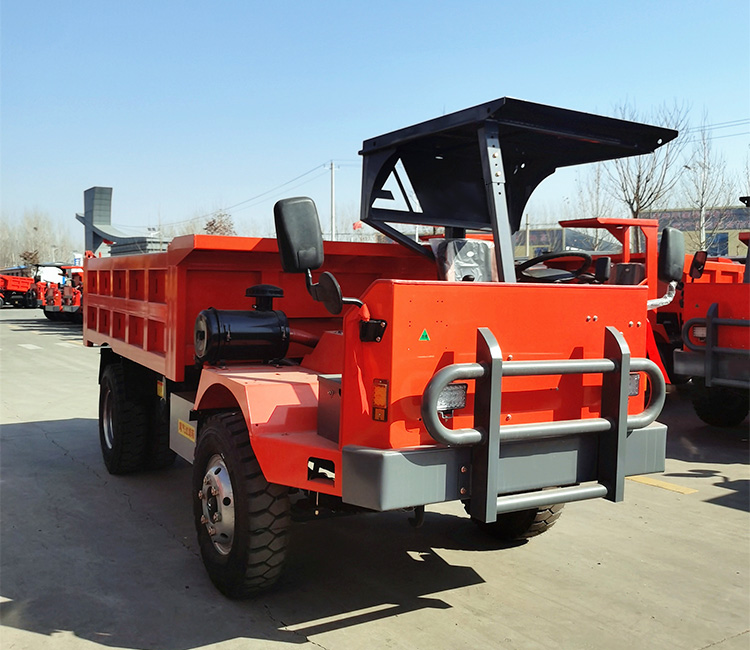

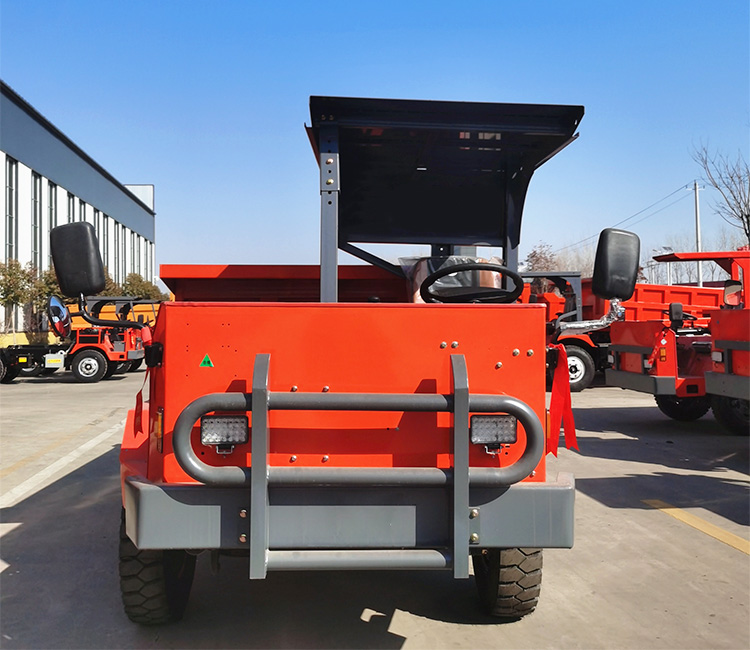

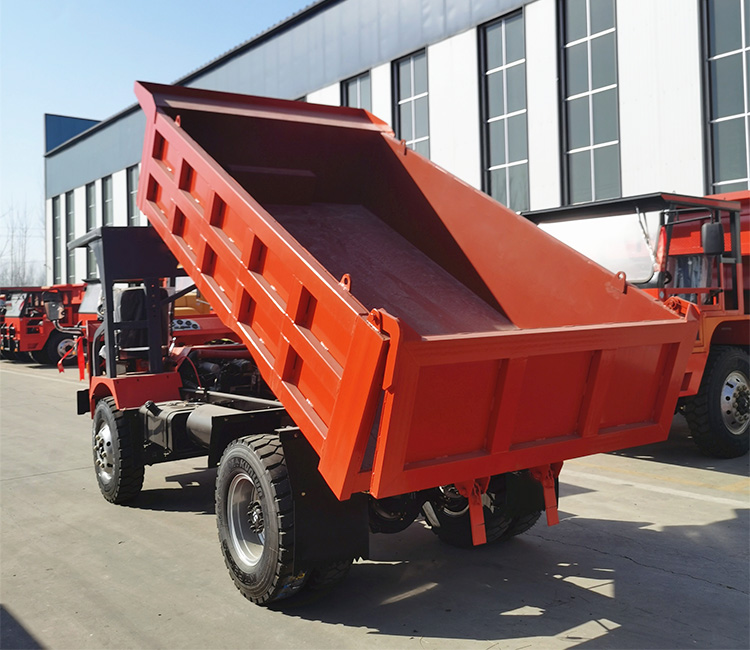

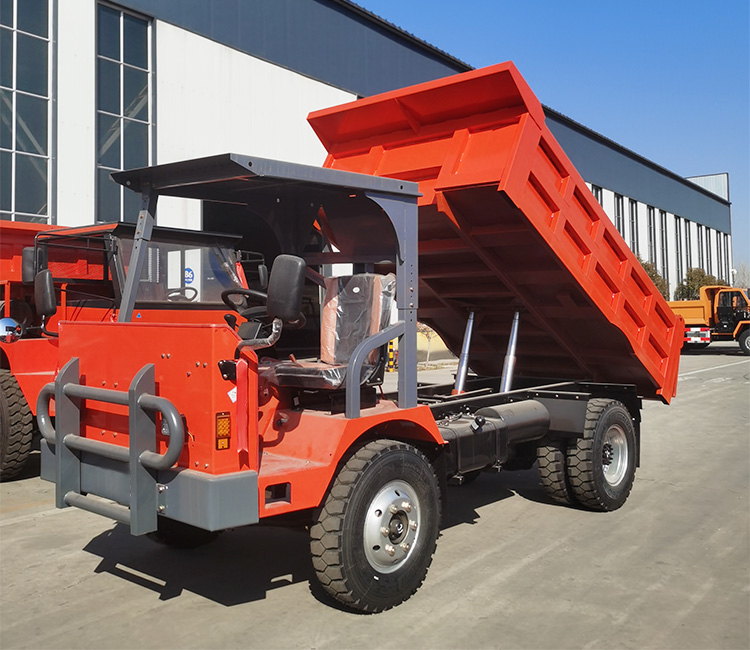

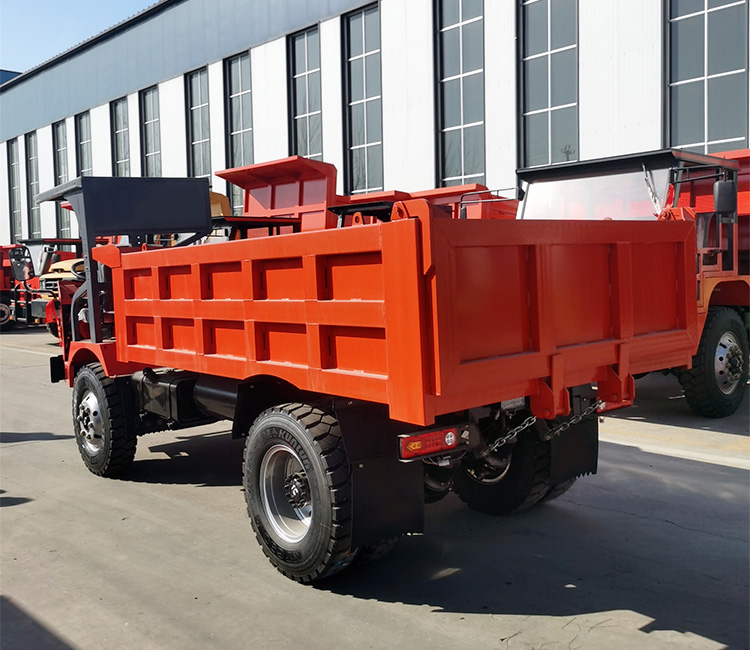

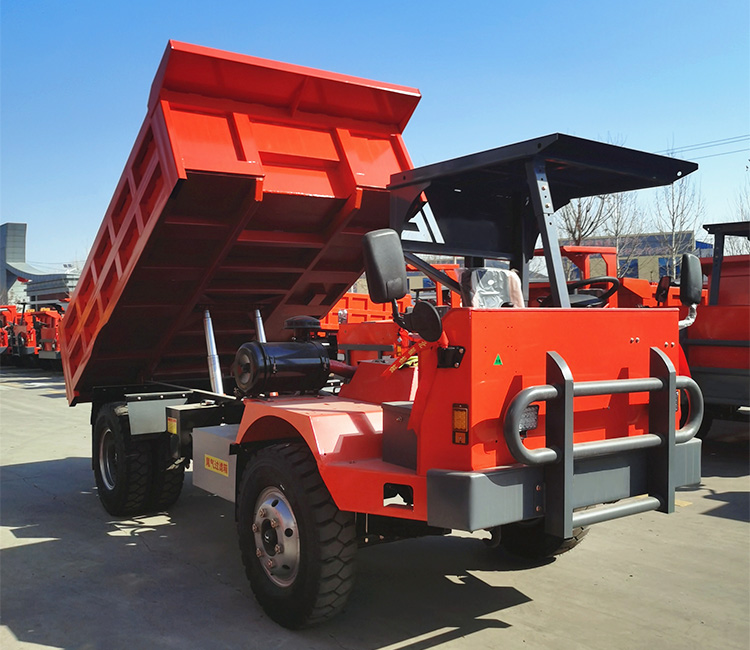

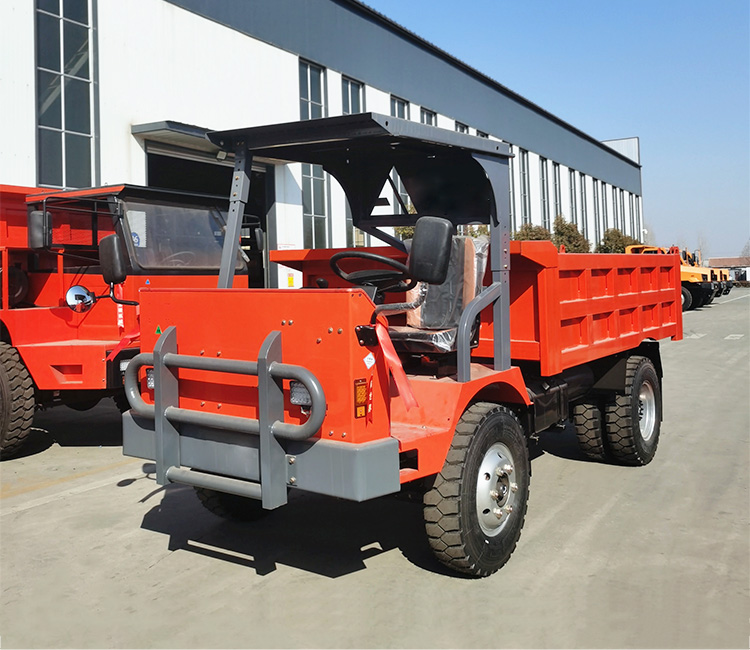

Mining Dump Truck

The 7-ton rear wheel drive non road transport vehicle is a transportation tool suitable for various non road environments, especially for mine the tunnel the construction site waiting for complex terrain. These types of vehicles usually have powerful power systems and stable driving methods to ensure safe and effective transportation of goods in uneven or special road conditions. Here are some detailed introductions about 7-ton rear wheel drive non road transport vehicles:

Power system: These vehicles are typically powered by single cylinder, twin cylinder, four cylinder, or six cylinder engines, ensuring strong transport capabilities and adaptability to various road conditions.

Drive mode: Adopting a rear wheel drive design, this design provides better traction and stability in non road environments, especially when climbing or turning.

Special configuration: In order to adapt to special environments such as mines and tunnels, these vehicles may be equipped with reinforced frames and exhaust treatment systems to ensure reliability and environmental requirements in harsh environments.

Application scenarios: Suitable for various complex terrains such as mines, tunnels, plains, and mountainous areas, with strong passability, high carrying power, and reliable quality.

Customized service: We can provide customized production services for the modification according to customer needs, to meet the needs of different users.

Safety configuration: including exhaust pipe front, front disc brake with tire burst emergency device, four-wheel ABS, with speed limiter and other hazardous chemical specific configurations to improve driving safety.

The 7-ton rear wheel drive non road transport vehicle has become an important choice in the field of non road transport due to its powerful power system, stable driving mode, special configuration that adapts to complex environments, and wide range of application scenarios

Product Structure

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Self-starter operating system

Picture 1 shows two batteries, each of which is 12V, for a total of 24V. Picture 2 shows the switch forbattery operation.

Diesel engine with strong strength, good stability, low fuel consumption and other characteristics.  Gearbox has the characteristics of high output torque, high stability, strong climbing power, strong sustainable output power.

Hydraulic Power Steering Machine

The hydraulic power steering machine uses the hydraulic principle to help the driver rotate the front wheel. The driver turns left or right through the steering wheel to send a signal to the hydraulic booster. The hydraulic booster is located between the front axle and the body and is driven by a small hydraulic pump that pumps a mixture of compressed air and oil into the hydraulic cylinder, thereby helping the driver to easily turn the steering wheel. The transmission mechanism connects the output shaft of the hydraulic booster with the driving wheel to realize the steering of the front.

Gearbox

The gearbox of mining dump truck is one of the core components of the whole vehicle, and its performance directly affects the efficiency and safety of the whole vehicle. Taking Xugong mine dump truck as an example, its transmission usually adopts the combination of hydraulic torque converter and gear transmission mechanism, which has the advantages of simple structure and smooth transmission.

Cutoff brake

The working principle of the air brake is mainly based on the control of air pressure and the role of the energy storage spring. Specifically, when the driver presses the brake pedal, the air compressor compresses the air and stores it in a reservoir. This compressed air is then directed to the brake device, pushing the brake pads or brake shoes into close contact with the brake drum or brake disc, thereby generating braking force. In the parking brake, if the air path is interrupted or the air pressure is insufficient, the energy storage spring will automatically extend, push the brake device to generate braking force, and ensure that the vehicle can be stably parked in place.
