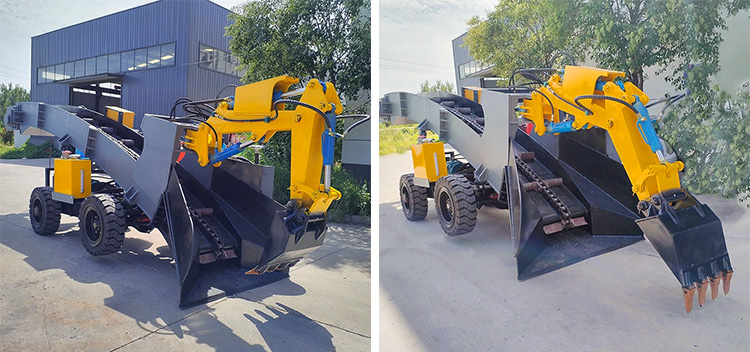

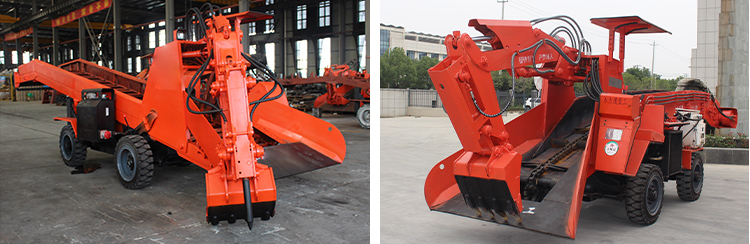

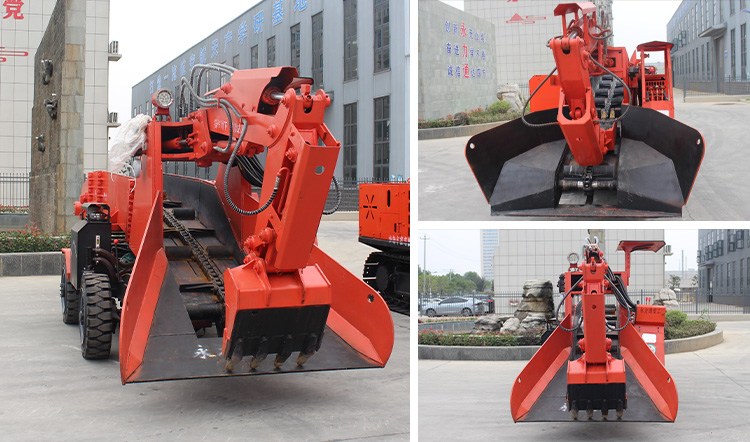

Wheel Scraper Mucking Loader

Milestone Vehicle provide various types of underground transport vehicles including underground mining vehicle and mining tricycle. Milestone Vehicle can accept vehicle customization services and ship immediately!

Send Inquiry

	ZWY-60/15T	ZWY-80/18.5T	ZWY-80/30L(A)	ZWY-80/22L	ZWY-100/30T(A)	ZWY-120/22T	ZWY-120/45L(A)	ZWY-120/37L
Loading capacity (m ³/h)	≥60	≥80	≥80	≥80	≥100	≥120	≥120	≥120
Ground clearance (mm)	≥180	≥180	≥120	≥120	≥160	≥160	≥180	≥120
Digging width (mm)	≥2700	≥2800	≥3050	≥2300	≥3980	≥4050	≥3050	≥3890
Loading width (mm)	≥2700	≥2800	≥3050	≥2300	≥3980	≥4050	≥3050	≥3890
Digging height (mm)	≥1900	≥1850	≥2950	≥2500	≥3400	≥3000	≥2900	≥2930
Unloading height (mm)	≥1500	≥1670	≥2000	≥1820	≥2050	≥2600	≥2000	≥2450
Climbing ability (°)	-15～+15	-15～+15	-25～+25	-25～+25	-15～+15	-15～+15	-25～+25	-25～+25
Travelling speed (m/s)	1.12	1.12	1.1	1.1	1.2	1.2	1	1.1
Electrical motor power (KW)	15	18.5	30	22	30	22	45	37
Track width (mm)	1580	1580	/	/	1600	1900	/	/

Application Scenario

1. Underground mining

2. Open-pit mining

3. Tunnel engineering

4. Water conservancy projects

5. Construction sites

6. Tunnel maintenance

Selling Points

1. Wheel type, flexible movement and easy transfer.

2. Scraper conveyor, suitable for large stones, low wear.

3. Strong conveying force, stable feeding and high efficiency.

4. Solid structure, wear-resistant and low failure rate.
